Contact insert for rectangular connectors Phoenix Contact
Add to selection
General information
Ordercode YESSS
0320-3380
Product code
1679414
EAN code
4017918168858
Product group
Contact insert for rectangular connectors
Brand
Phoenix Contact
Contact insert
Contact insert
Product description

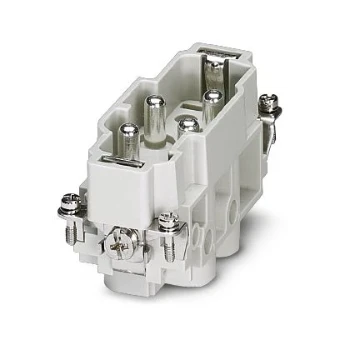

Contact insert, number of positions: 4+PE, size: B16, power contacts: 4, control contacts: 0, Pin, Screw connection, 830 V, 80 A, 1.5 mm² ... 16 mm²
Product specifications
Number of power contacts
4
Contact insert without contacts
No
Number of control contacts
0
Contact type
Pin
Number of poles
4
Diameter plug-in contact
6 mm
Material connector insert
Thermoplastic
Rated current In
80 A
Ambient temperature
125 - 125 °C
Operating temperature
-40 - 125 °C
Rated voltage
830 V
Rated surge voltage
8 kV
Over voltage category
III
Pollution degree
3
Type of electric connection
Screw connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
1.5 - 16 mm²
Connectable conductor cross section multi-wired
1.5 - 16 mm²
Material of contact surface
Other
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Min. number of insertion cycles
500
Width
34 mm
Height
42 mm
Depth
84.5 mm
