General information

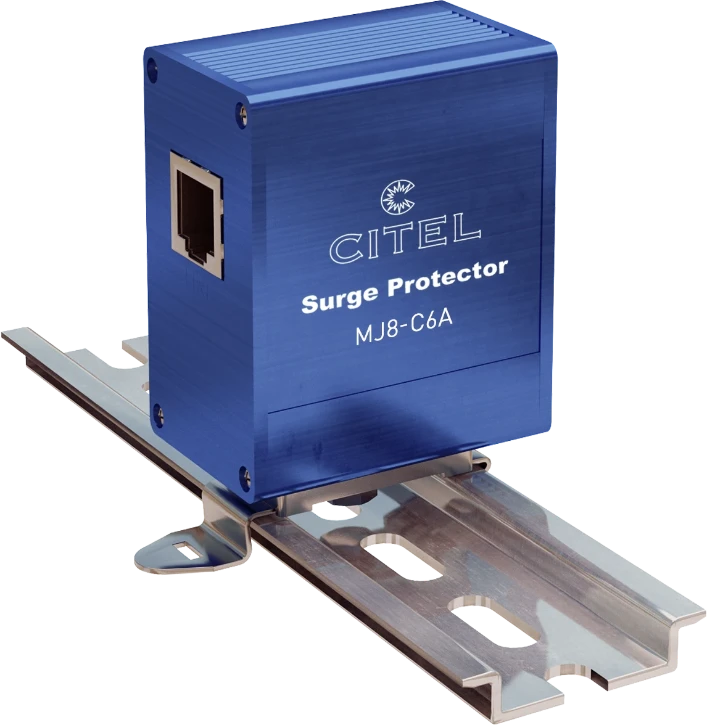

Überspannungsableiter für Ethernet 10GBase-T, Aluminiumgehäuse
Überspannungsableiter für Ethernet 10GBase-T, Aluminiumgehäuse
Ordercode YESSS
7514-5407
Product code
581540
EAN code
3309450026293
Product group
Surge protection device for data networks/MCR-technology
Brand
CITEL
Type
MJ8-C6A
Product description
2-stufiger Überspannungsableiter für Ethernet 10GBase-T Anwendungen Cat6A. Schutzschaltung aus Gasableitern und kapazitätsarmen Diodennetzwerk. Montage Auf-Putz und Hutprofilschiene 35 mm nach DIN EN 60715 TH35. Geprüft nach IEC 61643-21
Product specifications
Max. continuous voltage AC
6 V
Frequency
0 - 500 MHz
Limiting frequency
250 MHz
Pro-active thermo-control
No
Nominal discharge surge current (8/20)
2 kA
Lightning impulse current (10/350 µs)
0.5 kA
Nominal load current
1 A
Nominal voltage DC
0 - 6 V
Mounting method
Connector/cable adaptor
Connection 1
RJ45
Max. continuous voltage DC
8 V
Voltage protection level core/core
330 V
Voltage protection level core/earth
330 V
Explosion-tested version
No
Signalling at the device
None
With remote signalling contact
No
Signal disconnection
Yes
Earthing via
Separate conductor
Assembly width
34 mm
Degree of protection (IP)
IP20
