Crimp tool cable lugs, cable end sleeves, screen connection Cimco
Add to selection
General information
Ordercode YESSS
6737-9734
Product code
106652
EAN code
4021103004197
Product group
Crimp tool cable lugs, cable end sleeves, screen connection
Brand
Cimco

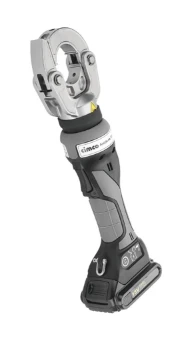

CIMPRESS 300, press head with quick-release fastener
CIMPRESS 300, press head with quick-release fastener
Product description
Bar type crimping tools; CIMPRESS 300; crimping head 180° rotatable, interchangeable crimping inserts, max. processing speed due to high performance motor, automatic return after completed crimping; crimping force: 62kN; stroke/opening width: 13 mm; crimping range: 6-300 mm²; crimping time (depending on cross section): 2-5s; Service cycle: 20,000 operations; Working range: -10°C to + 60°C; Battery voltage: 18 V; Battery capacity: 2.0 Ah Li-Ion; Battery charging time: 40 min.; NEW Crimping head with quick release 395x75x128; Weight: 3250 g
Product specifications
Suitable for
Various applications
Compression shape
Universal (exchangeable inserts)
Cross section
6 - 300 mm²
Length
395 mm
Construction/operation
Accumulator-hydraulic
Inserts exchangeable
Yes
With automatic return
Yes
Cycle time
2 - 5 s
Compression force
62 - 62 kN
