Crimp tool cable lugs, cable end sleeves, screen connection Cimco
Add to selection
General information
Ordercode YESSS
0948-5929
Product code
101868
EAN code
4021103018682
Product group
Crimp tool cable lugs, cable end sleeves, screen connection
Brand
Cimco

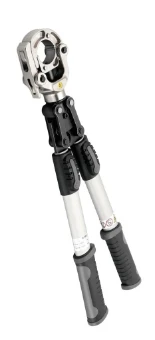

Mechanical manual press up to 60 kN (300 mm²)
Mechanical manual press up to 60 kN (300 mm²)
Product description
Mechanical hand press up to 60 kN (300 mm²) Suitable for crimping connecting material up to a maximum conductor cross-section of 300 mm² Features: Light, compact design - Infinitely adjustable telescopic handles (total length 560 - 860 mm) Foldable crimping head 360° rotatable - Without crimping inserts - Crimping force: 60 kN - Max. stroke: 19 mm
Product specifications
Suitable for
Various applications
Compression shape
Universal (exchangeable inserts)
Cross section
6 - 300 mm²
Length
560 mm
With locking device (for mechanical tools)
No
Construction/operation
Mechanical
Inserts exchangeable
Yes
With automatic return
No
