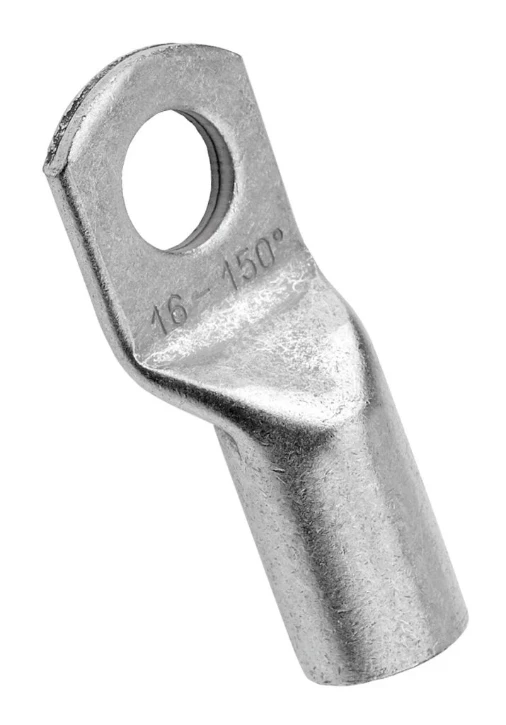

Tubular cable lug, ring shape, conductor cross-section/connection stud 6 mm²/10
- 180697
- |
- 180697
2155
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Tubular cable lug, ring shape, conductor cross-section/connection stud 6 mm²/10
Tubular cable lug, ring shape, conductor cross-section/connection stud 6 mm²/10 mm ⌀
Ordercode YESSS
180697
Product code
180697
Product group
Tubular cable lug for copper conductors
Brand
Cimco
Serie
Rohrkabelschuhe Cu, Normalausführung
Type
180697
Product description
Tubular cable lug Cu, standard version. Technical data - Material: Cu-ETP according to DIN EN 13600 - Surface: electro tin plated, other surfaces on request - also suitable for fine stranded conductors according to IEC 228 tubular cable lugs Cu, standard version. Annealed to copper hardness F20. Cross-section: 6 mm²; stud-⌀: 10; W: 15; ⌀i: 3,5; ⌀e: 6,5; C1: 9,8; C2: 9,5; a: 9; L: 32,5; weight per 100pcs. ~kg: 0,66; 7 mm: 1; compression 5 mm: 1; PU/pc.: 100.
Product specifications
Nominal cross section
6 mm²
Bolt dimension (metric)
10
Insulated
No
Material
Copper
Connecting angle
180° (horizontal)
Flange shape
Ring shape
Slender flange model
No
With sight-hole
No
Surface protection
Tinned
Number of mounting holes
1
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for extra fine-strand conductors
Yes
