General information

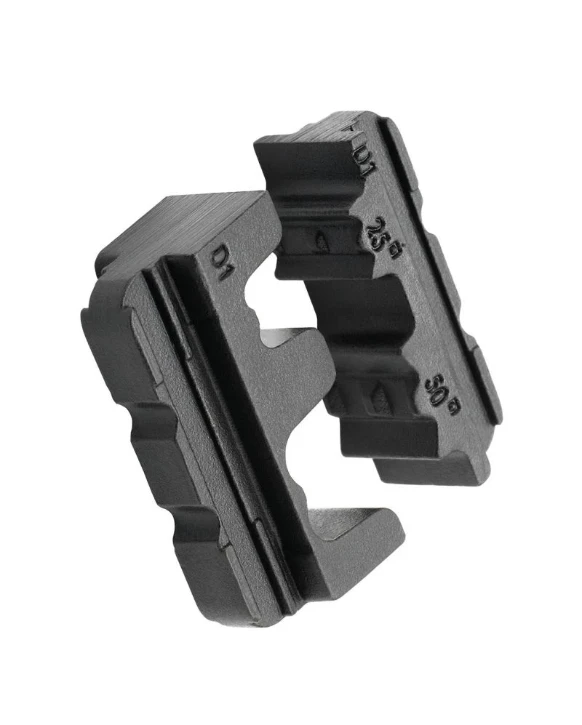

Replacement profile for Click 'n' Crimp, for insulated and non-insulated
Replacement profile for Click 'n' Crimp, for insulated and non-insulated wire end ferrules 25 mm² and 50 mm²
Ordercode YESSS
106071
Product code
106071
EAN code
4021103060711
Product group
Insert for crimp tool cable lugs, cable end sleeves, screen connection
Brand
Cimco
Serie
click'n'crimp System
Type
106071
Product description
Crimping dies for insulated and non-insulated wire-end ferrules 25 mm² and 50 mm², click 'n' crimp, trapezoidal ident crimping (D1), optimized crimp shape, particularly suitable for thinned, fine-stranded conductors to IEC 228, 1 pair
Product specifications
Application
Cable end sleeves
Cross section
25 - 50 mm²
Compression shape
Trapezoid compression
Min. AWG-size
4
Max. AWG-size
1
