Cable end sleeve Cimco
Add to selection
General information
Ordercode YESSS
0006-8200
Product code
185005
Product group
Cable end sleeve
Brand
Cimco
Type
185005

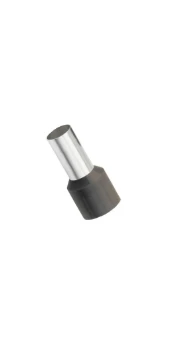

Ferrule insulated Cross-section/sleeve length 1.5 mm²/18 mm
Ferrule insulated Cross-section/sleeve length 1.5 mm²/18 mm
Product description
Insulated ferrules, dimensions according to DIN 46228, part 4, color series 1. Technical data; Material: Cu-ETP according to DIN EN 13600; Surface: electro tin plated; Insulation polypropylene; Temperature resistance -35°C to +105°C; For easy plugging onto fine stranded copper conductors, prevents damage and splicing. Design: Cross-section: 1.5 mm²; Length without insulation L2: 18 mm; Total length L1: 24 mm; D1: 1.7, S1: 0.15; S2: 0.25; D2: 3.5; Insulation color: black; Weight per 100 pcs.~kg: 0.02; Packs per unit: 500
Product specifications
Nominal cross section
1.5 mm²
Insulated
Yes
Construction type
Standard
Colour
Black
Sleeve length
18 mm
Material insulation
Polypropylene (PP)
Halogen free
Yes
Material
Copper
Surface protection
Tinned
For cables resistant to short circuit
No
With identification flag
No
Reel/roll packaging
No
AWG size
Other
Total length
24 mm
