Cable end sleeve Cimco
Add to selection
General information
Ordercode YESSS
0006-8197
Product code
185004
Product group
Cable end sleeve
Brand
Cimco
Type
185004

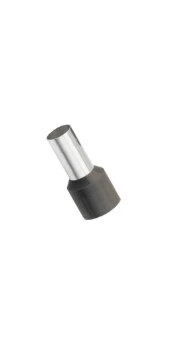

Ferrule insulated Cross-section/sleeve length 1.5 mm²/8 mm
Ferrule insulated Cross-section/sleeve length 1.5 mm²/8 mm
Product description
Insulated ferrules, dimensions according to DIN 46228, part 4, color series 1. Technical data; Material: Cu-ETP according to DIN EN 13600; Surface: electro tin plated; Insulation polypropylene; Temperature resistance -35°C to +105°C; For easy plugging onto fine stranded copper conductors, prevents damage and splicing. Design: Cross-section: 1.5 mm²; Length without insulation L2: 8 mm; Total length L1: 14 mm; D1: 1.7, S1: 0.15; S2: 0.25; D2: 3.5; Insulation color: black; Weight per 100 pcs.: 0.01; Packs per piece: 500
Product specifications
Nominal cross section
1.5 mm²
Insulated
Yes
Construction type
Standard
Colour
Black
Sleeve length
8 mm
Material insulation
Polypropylene (PP)
Halogen free
Yes
Material
Copper
Surface protection
Tinned
For cables resistant to short circuit
No
With identification flag
No
Reel/roll packaging
No
AWG size
Other
Total length
14 mm
