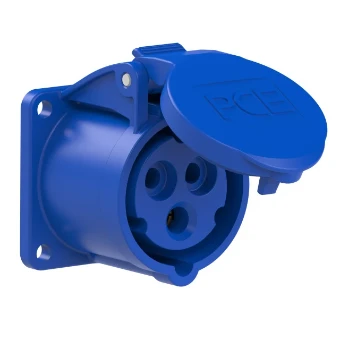

Panel-mounted CEE socket outlet (IEC 60309) PCE
Add to selection
General information
Ordercode YESSS
7551-3264
Product code
313-6f5
Product group
Panel-mounted CEE socket outlet (IEC 60309)
Brand
PCE
Type
313-6f5
CEE-Anbausteckdose gerade (55x55mm) 16A 3p 6h IP44/IP54
CEE-Anbausteckdose gerade (55x55mm) 16A 3p 6h IP44/IP54
Product description
CEE-Anbausteckdose gerade (55x55mm) 16A 3p 6h IP44/IP54
Gehäusematerial: PA6
Nennstrom: 16A
Polzahl: 3 (2P+PE)
Uhrzeit-Stellung: 6h
Nennspannung/Frequenz: 200-250V~ / 50+60Hz
Kontakte: Messing
Anschlusstechnik: Schraubklemmen
Abmessungen (Flansch/Bohrung): 55x55 mm / 44x44 mm
Schutzart: IP44/IP54
Product specifications
Number of poles
3
IEC-amperage
16 A
Identification colour
Blue
Clock hour position
6 h
Voltage according to EN 60309-2
230 V (50+60 Hz) blue
Degree of protection (IP)
IP54
Connection system
Screwed terminal
Insert direction
Straight
Material
Plastic
Flange size vertical
55 mm
Drill hole distance vertical
44 mm
Flange size horizontal
55 mm
Drill hole distance horizontal
44 mm
Contact material
CuZn
Surface coating contacts
Untreated
