Downlight/spot/floodlight Brumberg
Add to selection
General information
Ordercode YESSS
6171-6475
Product code
38357073
EAN code
4251433914259
Product group
Downlight/spot/floodlight
Brand
Brumberg
LED recessed spot 230 V AC, 6 W
LED recessed spot 230 V AC, 6 W
Product description

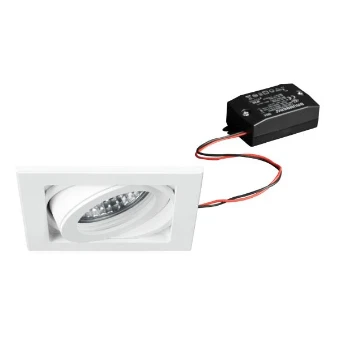

LED recessed spot set, on/off switchable, white structure, Square. In a compact design, for installation in tool-less rapid assembly systems. Set including a converter for 230-V mains voltage, on/off switchable, dimensions of converter: L 68 x W 35 x H 21 mm Mounting method: Recessed mounting, Place of installation: Ceiling-mounted, Material: Aluminium / Glass / Plastic, Degree of protection: according to DIN EN 60529 IP20, Protection class: (EN 61140) II, Voltage: 230V AC 50Hz, Power: 6W, Amount of light sources / fittings: 1.0 Qty, Luminous flux: 680lm, Colour temperature: 3.000 K, Beam angle: 38°, Adjustability: Rotable and pivoted, With control gear: Yes, Dimmable: No, Control: on/off.
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
Yes
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
No
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Rotating and swivelling
With light source
Yes
Colour housing
White
Suitable for low voltage cable system
No
With light sensor
No
Reflector
High-gloss
Light sharing
Symmetric
Suitable for number of lamps
1
Lamp holder
None
Type of control gear
LED operating device current-controlled
Suitable for lamp power
6 - 6 W
With control gear
Yes
Surface protection
Powder coating
Max. system power
6 W
Surface brushed
No
Nominal voltage
230 - 230 V
Colour temperature
3000 - 3000 K
Material housing
Aluminium
Material cover
Glass transparent
Dimming depending on control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
Medium beam 21-40°
Dimming potentiometer (integrated)
No
Length
87 mm
Dimming GPRS
No
Width
87 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
3 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
II
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Type of wiring
Suitable for through wiring
Suitable for workplace according to EN 12464-1
No
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
No
Colour temperature adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
IFTTT support available
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Operation by Bluetooth
No
