LED driver Brumberg
Add to selection
General information
Ordercode YESSS
6171-5941
Product code
17223000
EAN code
4251433913047
Product group
LED driver
Brand
Brumberg

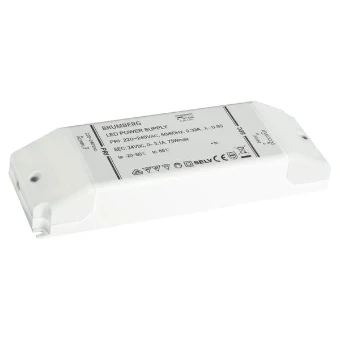

LED power supply 20-75 W, 24 V DC, IP20, on/off
LED power supply 20-75 W, 24 V DC, IP20, on/off switchable
Product description
LED power supply 24 V DC, on/off. This power supply unit is equipped with safety devices which protect it against overvoltage, short-circuit as well as thermal and electric overloads. The input and output terminals are suitable for cables with a cross-section of up to 1.0 mm². Material: Plastic, Degree of protection: according to DIN EN 60529 IP20, Protection class: (EN 61140) II, Voltage: 24V, Power: 75W, Control: on/off.
Product specifications
Model
Dynamic
Output power
1 - 75 W
Dimming 0-10 V
No
Dimming 1-10 V
No
Suitable for outdoor use
No
Dimming DALI
No
Suitable for constant current
No
Dimming DSI
No
Housing
Plastic housing
Suitable for constant voltage
No
Dimming DMX
No
Output voltage
24 - 24 V
Degree of protection (IP)
IP20
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Suitable for DC-voltage (primary side)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Length
185 mm
Dimming mains voltage modulation
No
Protection class
II
Width
60 mm
Dimming phase cut-off
No
Height
31 mm
Dimming phase cut-on
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
