General information

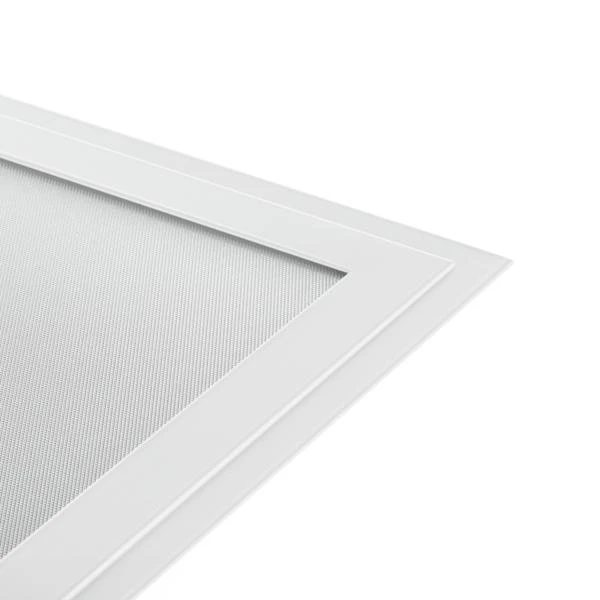

LED-Panel 1.495 x 295 mm, 45 W, 3.000 K, 5.400
LED-Panel 1.495 x 295 mm, 45 W, 3.000 K, 5.400 lm, Mikroprismen (UGR<19), weiss
Ordercode YESSS
7590-0503
Product code
32065073
EAN code
4251433998464
Product group
Ceiling-/wall luminaire
Brand
Brumberg
Serie
TIMOR
Type
32065073
Product description
LED-Einlege-Panel 1.495 x 295 mm, mikroprismatische Abdeckung, UGR < 19, schaltbar, weiß matt, rechteckig. Ausgeführt in kompakter Bauform für werkzeuglose Schnellmontage zum Deckeneinbau. Ausführung: ohne Fassung, Montageart: Einbaumontage, Montageort: Deckenmontage, Material: Aluminium / PMMA, Schutzart raumseitig: nach DIN EN 60529: IP20, Schutzklasse: (EN 61140) II, Spannung: 230V AC 50Hz, Leistung: 45 W, Anzahl der Leuchtmittel / Fassungen: 1 Stück, Lichtstrom: 5.400 lm, Farbtemperatur: 3.000 K, Lichtfarbe: weiß, Abstrahlwinkel: 85°, Verstellbarkeit: nicht verstellbar, Mit Betriebsgerät: Ja, Dimmbar: Nein, Art der Dimmung: schaltbar.
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal voltage
220 - 240 V
Colour temperature
3000 - 3000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
White
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Dimming DSI
No
Suitable for workplace according to EN 12464-1
Yes
Dimming potentiometer (integrated)
No
Type of grid
Other
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
> 80° - Extreme wide beam
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
1495 mm
Dimming programmable
No
Width
295 mm
Dimming RF
No
Height/depth
11 mm
Dimming Touch and Dim
No
Built-in length
1477 mm
Dimming Zigbee
No
Built-in width
277 mm
Dimming with push-button
No
Built-in height/depth
40 mm
With movement sensor
No
Light distributor
Other
With light sensor
No
Protection class according to IEC 61140
II
Impact strength
IK04
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Covering of the luminaire with thermally insulating material possible
No
Max. system power
45 W
With air slots
No
Voltage type
AC/DC
Rated lifetime L70/B50 at 25 °C
125000 h
Colour of light
White
Colour rendering index CRI
80-89
Degree of protection (NEMA)
1
Rated ambient temperature according to IEC 62722-2-1
45 - 45 °C
Suitable for lamp power
45 - 45 W
Power factor
95
Type of wiring
Suitable for loop-through wiring
Number of poles
3
Conductor cross section
1.5 mm²
Connection type
Other
Surface protection housing
Powder coating
Exchangeable control gear
Yes
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
6.45 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
9 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
2 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
5 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
23
Max. number of luminaires per miniature circuit breaker C16 (MCB)
39
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Constant light output (CLO)
Yes
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
19
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
No
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Compatible with Casambi
No
Dimmable
No
Luminaire efficacy
120 - 120 lm/W
Rated luminous flux according to IEC 62722-2- 1
5400 - 5400 lm
With presence detector
No
Containing product according to 2019/2020/EU
Yes
Total harmonic distortion (THD)
20 %
Degree of protection (IP), front side
IP20
Max. number of luminaires per miniature circuit breaker C10 (MCB)
24
Ball-proof according to DIN 18032-3
No
With mounting material
No
With switch
No
