In-ground luminaire Brumberg HYBRIDE FLAT
Add to selection
General information
Ordercode YESSS
6909-3862
Product code
14036223
EAN code
4251433925576
Product group
In-ground luminaire
Brand
Brumberg
Serie
HYBRIDE FLAT
Type
14036223

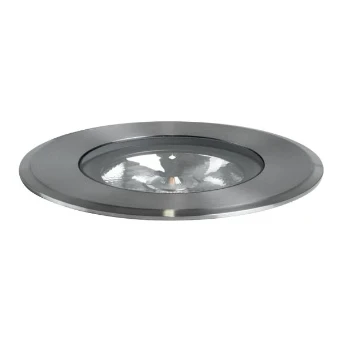

LED floor recessed light V4A, IP67, stainless steel, round, protection
LED floor recessed light V4A, IP67, stainless steel, round, protection class: I
Product description
LED-floor recessed light, V4A, IP67, stainless steel, Round.Recessed mounting, Floor-mounted Mounting method: Recessed mounting, Place of installation: Floor-mounted, Material: Stainless steel V4A / Aluminium / Glass, Degree of protection: according to DIN EN 60529 IP67, Protection class: (EN 61140) III, Voltage: 24V, Power: 12 W, Amount of light sources / fittings: 1 Qty, Luminous flux : 890 lm, Colour temperature: 3.000 K, Beam angle: 30°, withou control gear, Dimmable: No, Control: on/off.
Product specifications
Lamp type
LED not exchangeable
With control gear
No
Nominal voltage
24 - 24 V
Housing colour
Stainless steel
Material cover
Glass transparent
Lamp holder
None
Suitable for number of light sources
1
Type of control gear
LED operating device voltage-controlled
Voltage type
DC
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Adjustable
No
Dimming LineSwitch
No
Light distribution
Symmetric
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Outer diameter
150 mm
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Built-in diameter
135 mm
Max. load
1000 kg
Dimming Zigbee
No
Dimming with push-button
No
Over rollable
No
Protection class according to IEC 61140
III
Degree of protection (IP)
IP67
With light source
Yes
Colour of light
White
Colour temperature
3000 - 3000 K
Colour rendering index CRI
80-89
Suitable for lamp power
12 - 12 W
Max. system power
12 W
Built-in height/depth
35 mm
Type of wiring
Suitable for loop-through wiring
Housing material
Stainless steel
Impact strength
IK08
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
