LED wall recessed light 230 V AC, 50 Hz, 1,2
Add to selection
General information
Ordercode YESSS
2694-6484
Product code
10012223
EAN code
4250047765769
Product group
Orientation luminaire
Brand
Brumberg
Serie
ECHANI-IP-R
Type
10012223
LED wall recessed light 230 V AC, 50 Hz, 1,2
LED wall recessed light 230 V AC, 50 Hz, 1,2 W, 3000 K, IP54, round, stainless
STOCK
IN STOCK
0
piece
Product description

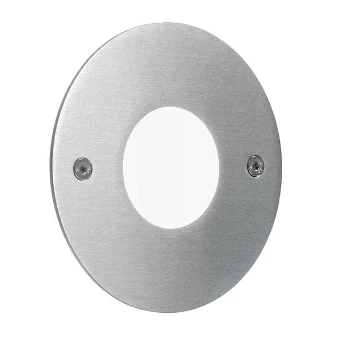

LED wall recessed light, IP54, stainless steel, Round. Recessed mounting, Wall-mounted Including a converter for connection with the 230-V mains voltage, on/off switchable and cavity wall mounting box Ø DA: 68 mm / installation depth: 65 mm Mounting method: Recessed mounting, Place of installation: Wall-mounted, Material: Stainless steel / Acrylic / Plastic / Silicone rubber, Degree of protection: according to DIN EN 60529 IP54, Protection class: (EN 61140) I, Voltage: 230V AC 50Hz, Power: 1.2 W, Amount of light sources / fittings: 1 Qty, Luminous flux : 40 lm, Colour temperature: 3.000 K, Adjustability: Not adjustable, With control gear: Yes, Dimmable: No, Control: on/off.
Product specifications
Type of covering
Disc
Material cover
Plastic, opal
Suitable for number of light sources
1
Housing material
Stainless steel
Degree of protection (IP)
IP54
Lamp type
LED not exchangeable
Lamp holder
None
Voltage type
AC
Nominal voltage
230 - 230 V
Suitable for surface mounting
No
Housing colour
Stainless steel
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Diameter
80 mm
Dimming DMX
No
Built-in diameter
68 mm
Type of control gear
LED operating device current-controlled
Dimming DSI
No
With control gear
Yes
Dimming potentiometer (integrated)
No
With light source
Yes
Dimming GPRS
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Colour of light
White
Dimming Sine Wave Reduction
No
Colour temperature
3000 - 3000 K
Dimming Touch and Dim
No
Colour rendering index CRI
70-79
Dimming Zigbee
No
Dimming with push-button
No
Dimming depending on control gear
No
Protection class according to IEC 61140
I
Suitable for lamp power
1.2 - 1.2 W
Max. system power
1.2 W
Height/depth
2.5 mm
Built-in height/depth
65 mm
Exchangeable control gear
Yes
Light distribution
Symmetric
Luminaire efficacy
33.33 lm/W
Energy efficiency class of the light source according to EU regulation 2019/2015
Not required
Operation by Bluetooth
No
Compatible with Casambi
No
Suitable for built-in mounting
Yes
