LED-converter 350 mA, 4,2-10 W, trailing-edge phase dimmable, customised: Plug&

  • 6909-3508
  • |
  • 17640020
0 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

LED-converter 350 mA, 4,2-10 W, trailing-edge phase dimmable, customised: Plug& LED-converter 350 mA, 4,2-10 W, trailing-edge phase dimmable, customised: Plug&
Ordercode YESSS
6909-3508
Product code
17640020
EAN code
4251433923879
Product group
LED driver
Brand
Brumberg
Type
17640020

Product description

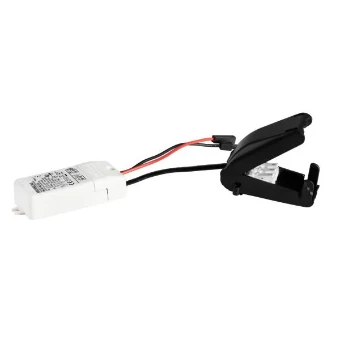

LED converter 350 mA, trailing-edge phase dimmable. This converter is equipped with safety devices which protect it against overvoltage, short-circuit as well as thermal and electric overloads. The input and output terminals are suitable for cables with a cross-section of up to 2.5 mm². Material: Plastic, Degree of protection: according to DIN EN 60529 IP20, Protection class: (EN 61140) II, Current: 350 mA, Voltage: 230V AC 50Hz, Power: 10W, Control: Trailing-edge phase.

Product specifications

Output power
4.2 - 10 W
Dimming 0-10 V
No
Dimming 1-10 V
No
Suitable for outdoor use
No
Dimming DALI
No
Suitable for constant current
Yes
Dimming DSI
No
Housing
Plastic housing
Suitable for constant voltage
No
Dimming DMX
No
Output voltage
8.5 - 28 V
Degree of protection (IP)
IP20
Dimming potentiometer (integrated)
No
Output current
350 - 350 mA
Dimming GPRS
No
Suitable for DC-voltage (primary side)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Length
102 mm
Dimming mains voltage modulation
No
Protection class according to IEC 61140
II
Width
38 mm
Dimming phase cut-off (trailing edge)
Yes
Height
21 mm
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Dimmable
Yes
Dimming DALI-2
No
Frequency input voltage
47 - 63 Hz
Independently operating
Yes
PWM modulation
No
Overtemperature protection
Yes
Dimming D4i
No
Mains surge immunity (differential mode, L-N)
1 kV
Ambient temperature
45 - 45 °C
Max. number of luminaires per miniature circuit breaker B16 (MCB)
50
Driver lifetime
50000 h
