Digital-Multimeter TRMS, 1000V, 10 A, Durchg. Diode. AutoV. Cat IV.

Add to selection

General information

Ordercode YESSS

5056-5742

Product code

044087

EAN code

4014651440876

Product group

Multimeter

Brand

BENNING

Type

BENNING MM 6-2

Digital-Multimeter TRMS, 1000V, 10 A, Durchg. Diode. AutoV. Cat IV. Digital-Multimeter TRMS, 1000V, 10 A, Durchg. Diode. AutoV. Cat IV. Inkl. Zub.

STOCK

IN STOCK

2 piece

Product description

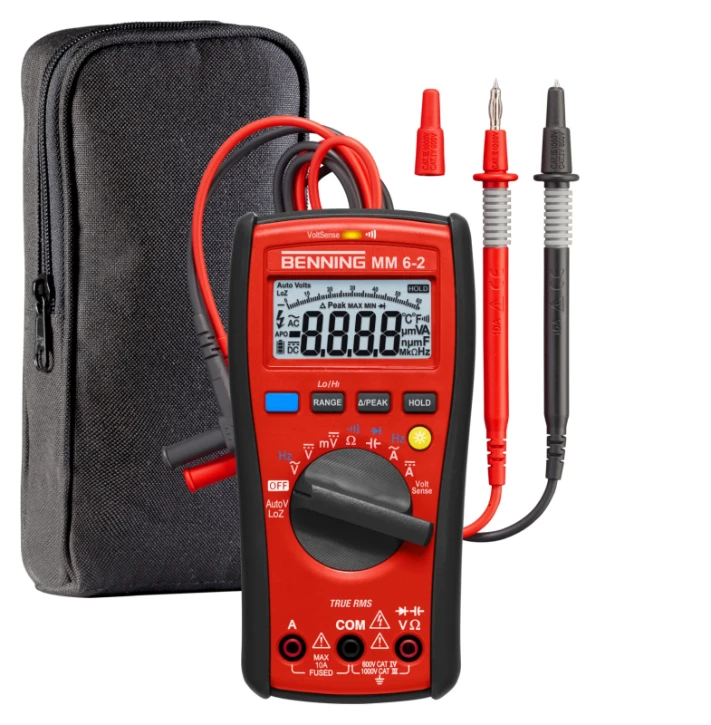

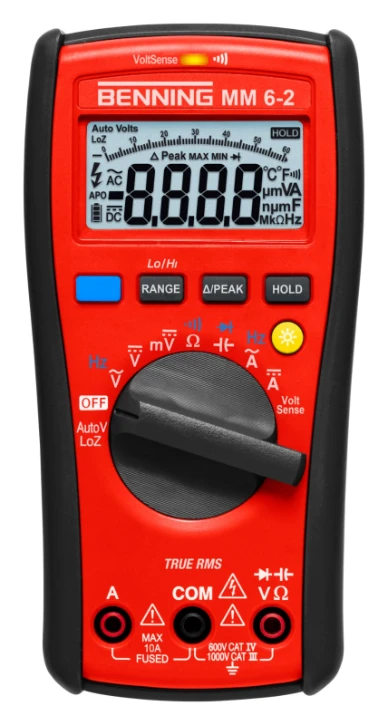

Benning MM 6-2 True RMS-Digital-Multimeter. 4-stellig, beleuchtete LCD-Anzeige (6000 Punkte) mit Bargraph. Spannung 100 µV - 1000 V AC/DC, Strom 1 mA - 10 A AC/DC, Widerstand 0,1 Ohm - 40 MOhm. Kapazität 1 nF - 10 mF, Frequenz 1 Hz - 100 kHz. Durchgangsprüfung (20 Ohm) (rote LED/ Summer)/ Diodenprüfung (1.5 V). TRUE RMS Echteffektivwertmessung. AutoV-Funktion für automatische AC/ DC-Spannungserkennung. Niedrige Eingangsimpedanz (LoZ) zur Unterdrückung von kapazitiv/induktiv eingestreuten Spannungen. Integrierter Voltsensor signalisiert berührungslos Phasenspannungen und Kabelbrüche in Leitungen (optisch/akustisch). Einpolige Phasenprüfung. Messbereichswahl, Abschaltung, Batterieunterspannungsanzeige automatisch. HOLD, PEAK, REL. CAT IV 600 V/ CAT III 1000 V. Inklusive Gummischutzrahmen mit Magnetaufhänger, Tasche, 9 V Block 6LR61 Batterie, Messleitungen, Sicherung 11 A (10218772).

Product specifications

Indication

Digital

Multiple display

Measuring range selection

Automatic

Interface

Max. voltage measuring range AC

1000 V

Lowest resolution, AC voltage

0.1 mV

Max. voltage measuring range DC

1000 V

Lowest resolution, DC voltage

0.1 mV

Max. current measuring range, AC

10 A

Lowest resolution, AC current

1000 µA

Max. current measuring range, DC

10 A

Lowest resolution, DC current

1000 µA

Milliohm measurement with 4 wire technique (Kelvin connection)

Lowest resolution, resistance

0.1 Ohm

Resistance test/diode test

Yes

Temperature measurement RTD

Capacitance measurement

Yes

Temperature measurement TC

Frequency measurement

Yes

Max. temperature measuring range

0 °C

With decibel measurement (dB)

Lowest resolution temperature

Other

Relative value measurement

Yes

Inductance measurement

Max. capacitance measuring range

10000 µF

With conductivity measurement

Lowest resolution, capacitance

0.001 µF

Data hold

Yes

Max. value storage

Max. frequency measuring range

100 kHz

Min. value storage

Lowest resolution, frequency

1 Hz

Peak value memory

Yes

True RMS measurement

Yes

Duty cycle measurements

Nominal test voltage 10 V

Measured value memory

Nominal test voltage 50 V

Measuring circuit category

CAT IV

Nominal test voltage 100 V

Nominal test voltage 250 V

Nominal test voltage 500 V

Nominal test voltage 1000 V

Cable length measurement

Cable symmetry testing for two wire connections a-b-E

Power and energy measurement

Harmonics analysis/power quality

Continuity test

Yes

Rotational speed measuring

Bluetooth interface

IR interface

Automatic circuit breaker

Max. voltage measuring circuit category

600 V

Explosion-tested version

Scaling bar graph linear

Yes

Scaling bar graph logarithmic

With display backlight

Yes

Temperature measurement

Degree of protection (IP)

IP30

Max. resistance measuring range

40 mOhm

Isolation resistance measuring range

0 - 0 mOhm

Max. voltage measuring range AC/DC

1000 V

Lowest resolution, AC/DC voltage

0.1 mV

Max. current measuring range, AC/DC

10 A

Lowest resolution, AC/DC current

1000 µA

Max. current measuring range with clip factor

0 A

Measurement principle

True root mean square

Relative measurement accuracy

0.5 %

High voltage test for motor windings

Current supply

Battery

Calibration according to ISO/IEC 17025

Calibration certificate according to DAkkS

COFRAC certified

more specifications
