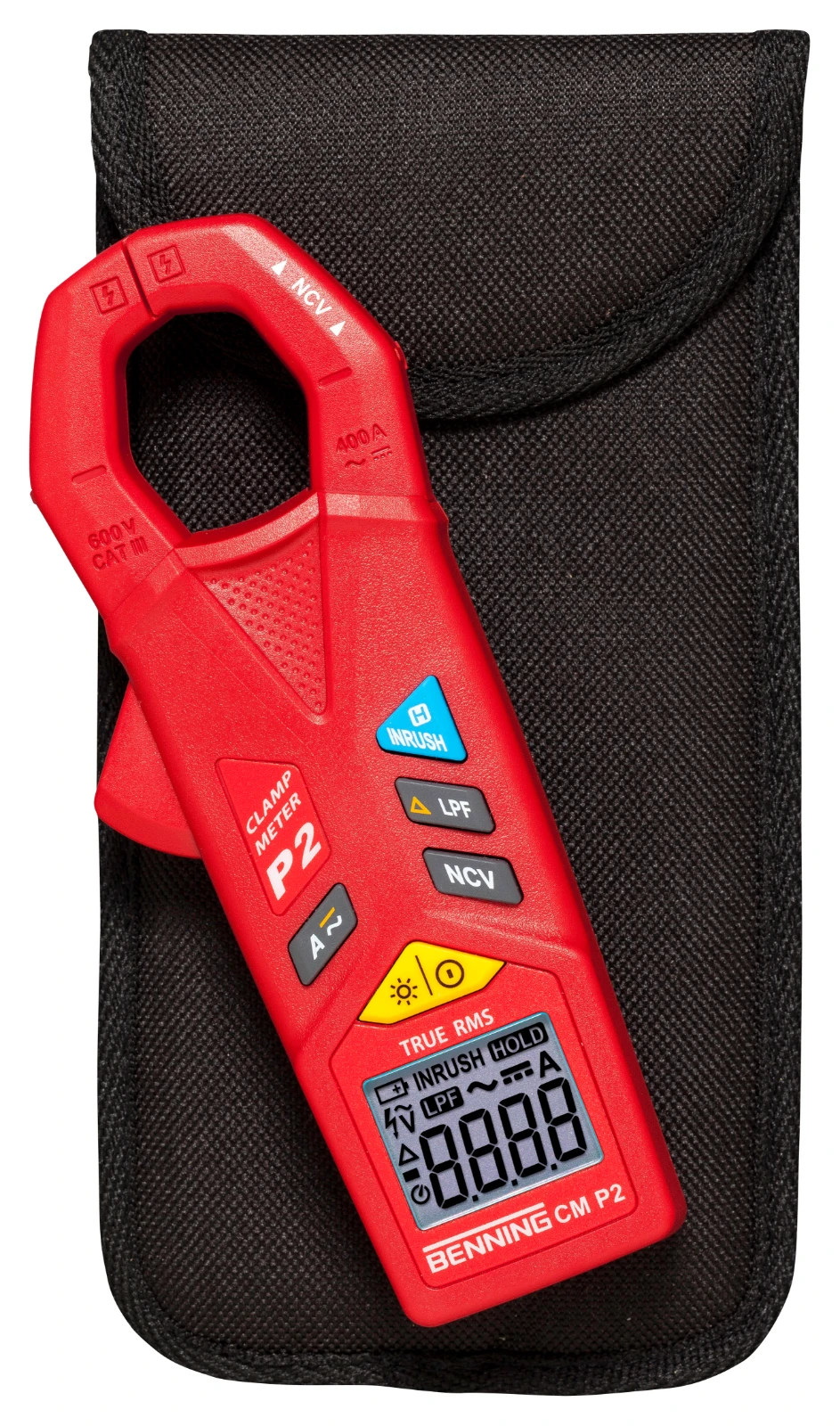

Clamp measuring instrument BENNING
Add to selection
General information
Ordercode YESSS
6731-4520
Product code
044678
EAN code
4014651446786
Product group
Clamp measuring instrument
Brand
BENNING
Type
BENNING CM P1

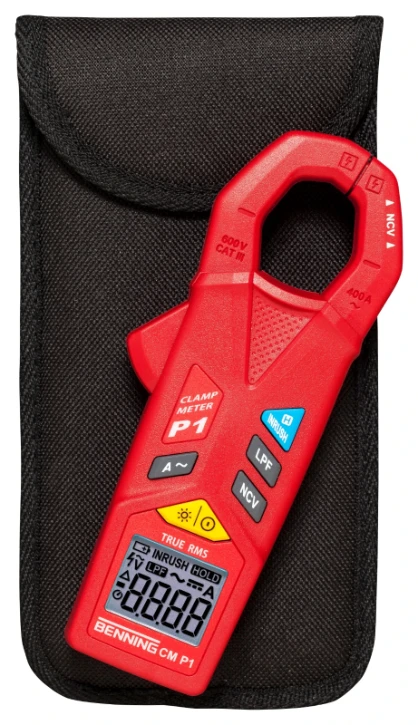

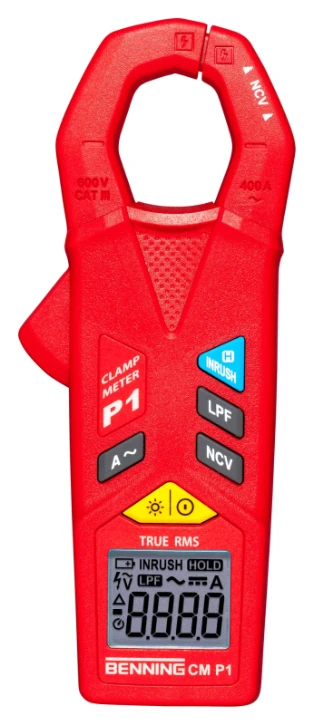

Trms-Digital-Stromzange 10mA - 400A AC. Zange max. 23 mm. Voltsensor,
Trms-Digital-Stromzange 10mA - 400A AC. Zange max. 23 mm. Voltsensor, Inrush, LPF, Hold. Cat III 600 V. Inklusive Zubehör.
Product description
Benning CM P1 True RMS Digital-Stromzange. Anzeige digital. 4-stellige LCD-Anzeige (4200 Punkte). Mit Bildschirmhintergrundbeleuchtung. Strommessbereich/AC 0.01 A - 400 A. Stromart Wechselstrom. Echteffektivwertmessung (TRMS) ja.Messbereichswahl automatisch. Abschaltung automatisch. Batterieunterspannungsanzeige automatisch. Integrierter Voltsensor NCV signalisiert berührungslos Phasenspannungen und Kabelbrüche in Leitungen, optisch/akustisch. Tiefpassfilter LPF. Momentanwertspeicher Hold. Zangenöffnung 23 mm. Abmessungen Länge 149 x Breite 59 x Tiefe 28 mm. Messkreiskategorie Cat III. Max. Spannung Messkreiskategorie 600 V. Inklusive Tasche, 2 x 1.5 V Micro/ AAA/ LR03 Batterie.
Product specifications
Indication
Digital
Type of current
AC
Measuring circuit category
CAT III
Jaw opening
23 mm
Current measuring range, DC
0 - 0 A
Current measuring range, AC
0.01 - 400 A
Measuring range selection
Automatic
Analogue bar graph display
No
True RMS measurement
Yes
Voltage measurement, AC
No
Voltage measurement, DC
No
Resistance measuring range
No
Power measuring
No
Leakage current measuring
No
Harmonics measurement
No
Measurement in cables with for- and back conductor
No
Version as adaptor to connect to multi meter
Yes
Interface
No
Continuity test
No
Multiple display
No
With display backlight
Yes
Temperature measurement
No
Capacitance measurement
No
Frequency measurement
No
Max. voltage measuring circuit category
600 V
Degree of protection (IP)
IP40
Measured value memory
No
