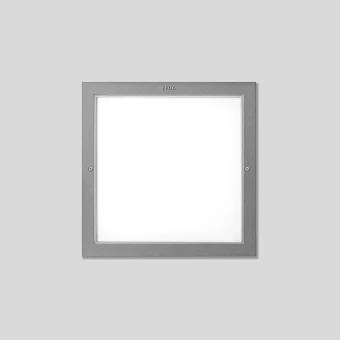

Recessed wall luminaire for indoors & outdoors, Silver 3000 K

Add to selection
General information
Ordercode YESSS
7601-7690
Product code
24200A
EAN code
04044017872096
Product group
Ceiling-/wall luminaire
Brand
BEGA
Serie
24200
Type
24200A
Recessed wall luminaire for indoors & outdoors, Silver 3000 K Recessed wall luminaire for indoors & outdoors, Silver 3000 K 4000 K
STOCK
IN STOCK
0 piece
Product description

BEGA Recessed wall luminaire 24200A. Location luminaire. The colour temperature of the luminaire can be set optionally to 3000 K and 4000 K. LED, 11 W Luminaire connected wattage, Luminaire luminous flux 854 lm in operation at colour temperature 3000 K. Luminaire luminous flux 898 lm in operation at colour temperature 4000 K. Colour rendering index (CRI) > 80. With replaceable BEGA LED module with an average rated service life of 175.000 operating hours (L80B50 at ta = 25 °C). 20 years warranty of availability for the LED module and wear parts. With LED power supply unit 220-240 V, 0/50-60 Hz. Protection class IP 65. Luminaire made of highly corrosion-resistant cast aluminium, aluminium and stainless steel. BEGA Tricoat® coating technology . Colour silver. Safety glass, white. Two cable entries for through-wiring power connecting cable up to 7-10.5 mm in diameter, 3 G 1,5 qmm. Luminaire for installation in a recessed opening whose dimensions are 230 x 230 x 110 mm, or in installation housing 10490 or Installation housing for EWIS external wall insulation systems 13542.

Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Lamp type
LED exchangeable
With light source
Yes
Type of control gear
Not required
With control gear
Yes
Nominal voltage
220 - 240 V
Colour temperature
3000 - 4000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
Silver
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Glass opal
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Length
105 mm
Dimming programmable
No
Width
250 mm
Dimming RF
No
Height/depth
250 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Built-in height/depth
110 mm
With movement sensor
No
With light sensor
No
Protection class according to IEC 61140
I
Impact strength
IK05
Max. system power
11 W
With air slots
No
Voltage type
AC/DC
Rated lifetime L70/B50 at 25 °C
175000 h
Colour rendering index CRI
80-89
Rated ambient temperature according to IEC 62722-2-1
25 - 45 °C
Suitable for lamp power
9.5 - 9.5 W
Exchangeable control gear
Yes
Colour of light adjustable
Positions
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Yes
