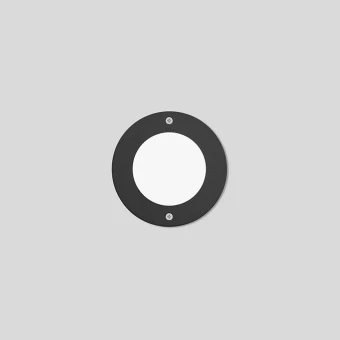

Recessed wall luminaire for indoors & outdoors, Graphite 3000 K

Add to selection
General information
Ordercode YESSS
0008-0062
Product code
22109K3
EAN code
04044017170512
Product group
Ceiling-/wall luminaire
Brand
BEGA
Serie
22109
Type
22109K3
Recessed wall luminaire for indoors & outdoors, Graphite 3000 K Recessed wall luminaire for indoors & outdoors, Graphite 3000 K
STOCK
IN STOCK
0 piece
Product description

BEGA Recessed wall luminaire 22109K3. Unshielded light. LED, 2.3 W luminaire connected wattage, 24 V DC, luminaire luminous flux 31 lm, colour temperature 3000 K. Colour rendering index (CRI) > 90. Without power supply unit. With replaceable BEGA LED module with overheating protection and an expected service life of at least 50,000 operating hours. 20 years warranty of availability of LED module and wear parts. Protection class IP 65, safety class III. Luminaire made of cast aluminium, aluminium and stainless steel BEGA Unidure® coating technology , colour graphite. Safety glass, white. One cable entry for power connecting cable up to 10.5 mm in diameter. Dimensions dia. 80 x 80 mm. Luminaire for installation in a recessed opening whose dimensions are dia. 71 x 90 mm, or in installation housing 10415.

Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Lamp type
LED exchangeable
With light source
Yes
Type of control gear
Not required
With control gear
Yes
Nominal voltage
24 - 24 V
Colour temperature
3000 - 3000 K
Housing material
Other
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
Anthracite
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Glass opal
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Length
80 mm
Dimming programmable
No
Width
80 mm
Dimming RF
No
Height/depth
80 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Built-in height/depth
90 mm
With movement sensor
No
With light sensor
No
Protection class according to IEC 61140
III
Impact strength
IK08
Max. system power
2.3 W
With air slots
No
Voltage type
DC
Rated lifetime L70/B50 at 25 °C
200000 h
Colour rendering index CRI
90-100
Rated ambient temperature according to IEC 62722-2-1
25 - 60 °C
Suitable for lamp power
1.9 - 1.9 W
Exchangeable control gear
Yes
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Yes
more specifications
