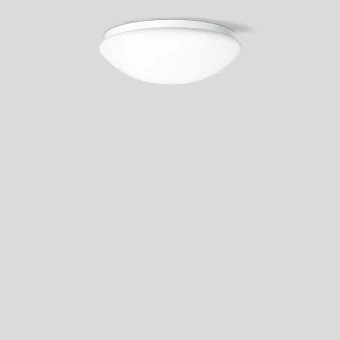

Ceiling-/wall luminaire BEGA 12133
Add to selection
General information
Ordercode YESSS
4977-8809
Product code
12133K4
EAN code
4044018166989
Product group
Ceiling-/wall luminaire
Brand
BEGA
Serie
12133
Type
12133K4
Decken- und Wandleuchte, für den Innenbereich, weiß 4000 K
Decken- und Wandleuchte, für den Innenbereich, weiß 4000 K
Product description
BEGA PRIMA Decken- und Wandleuchte 12133K4 für den Innenbereich. LED, 15,5 W Leuchten-Anschlussleistung, Leuchten-Lichtstrom 1064 lm, Farbtemperatur 4000 K. Farbwiedergabeindex (CRI) > 90. Mit austauschbarem BEGA LED-Modul mit Übertemperaturschutz und einer Lebenserwartung von mindestens 50.000 Betriebsstunden. 20-jährige Nachliefergarantie auf das LED-Modul und die Verschleißteile. Mit LED-Netzteil 220-240 V, 50-60 Hz. Leuchtenarmatur aus Metall. Oberfläche Farbe weiß. Mundgeblasenes seidenmattes Opalglas mit Bajonettverschluss. Zwei Leitungseinführungen zur Durchverdrahtung der Netzanschlussleitung bis Ø 10,5 mm. Leuchtendurchmesser 250 mm, Höhe 90 mm.
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED exchangeable
With light source
Yes
Type of control gear
Not required
With control gear
Yes
Nominal voltage
220 - 240 V
Colour temperature
4000 - 4000 K
Housing material
Other
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
White
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Glass opal
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Length
90 mm
Dimming programmable
No
Width
250 mm
Dimming RF
No
Height/depth
250 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Protection class according to IEC 61140
I
Impact strength
IK02
Max. system power
15.5 W
With air slots
No
Voltage type
AC
Rated lifetime L70/B50 at 25 °C
131000 h
Colour rendering index CRI
90-100
Rated ambient temperature according to IEC 62722-2-1
25 - 45 °C
Suitable for lamp power
11.6 - 11.6 W
Exchangeable control gear
Yes
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
Yes
