Power cord Bailey Textile cable
Add to selection
General information
Ordercode YESSS
6868-0510
Product code
142161
EAN code
8714681421611
Product group
Power cord
Brand
Bailey
Serie
Textile cable
Type
3C Plain 50m
Textile Cable 3C 50M Brown
Textile Cable 3C 50M Brown
Product description

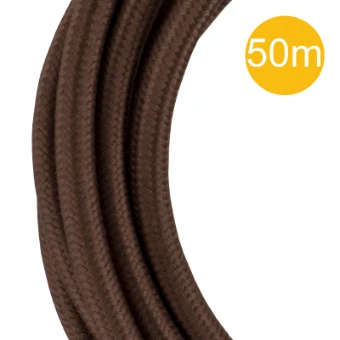

BAI Textile Cable 50 meter roll Brown 3x0.75mm² with earth wire Copper wire with textile coating 3 cores Fabric cord
Product specifications
Connection 1
Cable end sleeve
Connection 2
Cable end sleeve
Connector system system-oriented
No
Number of cores
3
Nominal cross section conductor
0.75 mm²
Length
50 m
Material outer sheath
Textile
Temperature resistance
1 - 40 °C
Nominal voltage
220 - 250 V
Colour outer sheath
Brown
Spiralized cable
No
Frequency
50 - 60 Hz
Oil resistant according to IEC 60811-404
No
With cord switch
No
Outer diameter approx.
6 mm
Degree of protection (IP)
IP20
Reaction-to-fire according to EN 13501-6: Class
None
Reaction-to-fire according to EN 13501-6: Smoke production
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Cable entry connection 1
Straight
Cable entry connection 2
Straight
With protective conductor
Yes
