General information

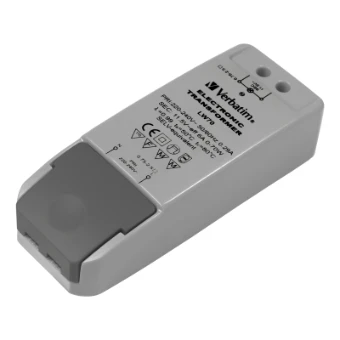

LED Transformator 12V AC 0-45W DIM LED Lampe
LED Transformator 12V AC 0-45W DIM LED Lampe
Ordercode YESSS
7182-5491
Product code
143820
EAN code
8714681438206
Product group
Transformer for low voltage light system/low voltage halogen lamp
Brand
Bailey
Serie
Light control
Type
Electronic Transformer
Product description
LED Elektronischer Transformator 12V LED 0-45W und Halogen 0-70W 113x44x28mm Min/Max Sekundärkabellänge 30-200cm Dimmbar Phasenan- und Phasenabschnitt
Product specifications
Type of transformer
Electronic transformer
Power
0 - 45 W
Dimmable
Yes
Output voltage
12 - 12 V
Dimming 0-10 V
No
Safety transformer
No
Dimming 1-10 V
No
Dimming DALI
No
Input voltage
220 - 240 V
Dimming DSI
No
Dimming DMX
No
Connection type primary side
Screw connection
Built-in
No
Dimming potentiometer (integrated)
No
Connection type secondary side
Screw connection
Dimming LineSwitch
No
Housing material
Plastic
Dimming manufacturer's proprietary system
No
Colour
Grey
Dimming mains voltage modulation
No
Short-circuit protected
No
Overload protection
No
Dimming phase cut-off (trailing edge)
Yes
Overtemperature protection
No
Dimming phase cut-on (leading edge)
Yes
With secondary automatic circuit breaker
No
Dimming programmable
No
Number of output positions (pairs)
1
Dimming RF
No
Length
113 mm
Dimming Sine Wave Reduction
No
Width
44 mm
Dimming Touch and Dim
No
Height
28 mm
Dimming Zigbee
No
Dimming with push-button
No
Degree of protection (NEMA)
Other
Degree of protection (IP)
IP20
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Dimming DALI-2
No
Suitable for surface mounting
No
