Downlight/spot/floodlight Bailey LED Floodlight
Add to selection
General information
Ordercode YESSS
7601-6037
Product code
146799
EAN code
8714681467992
Product group
Downlight/spot/floodlight
Brand
Bailey
Serie
LED Floodlight
Type
Switch

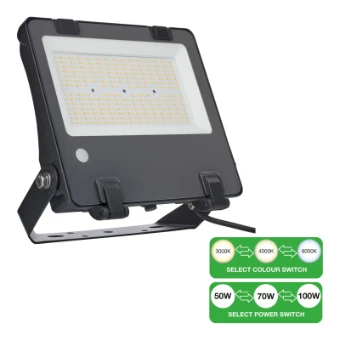

LED Floodlight Switch 50W-100W 7000-14000lm 3000K-6500K
LED Floodlight Switch 50W-100W 7000-14000lm 3000K-6500K
Product description
BAI LED Floodlight Switch 3CCT 50W=7000lm 70W=9800lm 100W=14000lm 3000K 4000K 6500K 220-260V IP66 IK08 Alu housing black 120° 0.5m cable
Product specifications
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
Adjustability
Swivelling
With light source
Yes
Colour housing
Black
Suitable for low voltage cable system
No
With light sensor
No
Reflector
Matt
Light sharing
Symmetric
Suitable for number of lamps
1
Lamp holder
None
Type of control gear
LED operating device current-controlled
Suitable for lamp power
50 - 100 W
With control gear
Yes
Surface protection
Powder coating
Nominal current
230 - 445 mA
Max. system power
100 W
Surface brushed
No
Nominal voltage
220 - 260 V
Colour temperature
3000 - 6500 K
Material housing
Aluminium
Material cover
Glass transparent
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
Extreme wide beam >80°
Dimming potentiometer (integrated)
No
Length
340 mm
Width
294 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
70 mm
Voltage type
AC
Dimming mains voltage modulation
No
Dimming phase cut-off
No
Dimming phase cut-on
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
80-89
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class
I
Dimming Touch and Dim
No
Impact strength
IK08
Dimming Zigbee
No
Dimming with push-button
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Light distributor
None
Covering of the luminaire with thermally insulating material possible
No
Light outlet
Direct
Rated life time L70/B50 at 25 °C
45000 h
Degree of protection (NEMA)
4X
Rated ambient temperature according to IEC62722-2-1
-40 - 50 °C
Power factor
0.9
Type of wiring
Ending
Number of poles
3
Conductor cross section
0.75 mm²
Connection type
Other
Suitable for workplace according to EN 12464-1
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Photobiological safety according to EN 62471
RG1
Colour consistency (McAdam ellipse)
SDCM6
Suitable for wall mounting
Yes
Exchangeable control gear
No
Dimming DALI-2
No
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
92.12 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
88.83 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)
78.71 %
Constant light output (CLO)
No
Flickering value Pst LM
0.2
Colour temperature adjustable
Positions
Luminous flux adjustable
Positions
Beam angle adjustable
No
Stroboscope effect value SVM
0.2
Max. number of luminaires per miniature circuit breaker B16
6
Max. number of luminaires per miniature circuit breaker C16
10
IFTTT support available
No
Unified Glare Ratio (UGR)
19
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
C
Operation by Bluetooth
No
Product information
