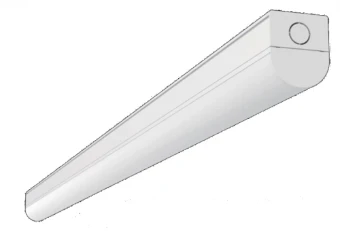

Alp Easy Batten 15-25W CCT 140lm/W 900MM

Add to selection
General information
Ordercode YESSS
7563-3888
Product code
3012500011
EAN code
08720207111171
Product group
Batten luminaire
Brand
ALP
Alp Easy Batten 15-25W CCT 140lm/W 900MM Alp Easy Batten 15-25W CCT 140lm/W 900MM
STOCK
IN STOCK
0 piece
Product specifications
Lamp type
LED not exchangeable
Type of control gear
LED operating device current-controlled
Length
900 mm
LED nominal current at constant current
0 - 0 mA
Lamp holder
None
With control gear
Yes
Dimming 0-10 V
No
Suitable for emergency lighting
Yes
Voltage type
AC
Nominal voltage
220 - 240 V
Dimming 1-10 V
No
Dimming DALI
No
Electrical connection with connector system
No
Material
Aluminium
Dimming DMX
No
Housing colour
White
Dimming DSI
No
Dimming potentiometer (integrated)
No
With switch
No
Dimming GPRS
No
Width
56 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Protection class according to IEC 61140
I
Dimming mains voltage modulation
No
Degree of protection (IP)
IP20
Dimming phase cut-off (trailing edge)
No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Covering of the luminaire with thermally insulating material possible
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With light source
Yes
Colour of light
White
Light distributor
Diffuser lens/optic/panel
Colour temperature
3000 - 5000 K
Colour rendering index CRI
80-89
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Rated lifetime L70/B50 at 25 °C
50000 h
Degree of protection (NEMA)
1
Filament test according to IEC 60695-2-11
650 °C - 30 s
With movement sensor
No
Suitable for lamp power
15 - 25 W
Max. system power
25 W
Power factor
95
Height/depth
68 mm
Type of wiring
Loop-through wiring included
Number of poles
3
Conductor cross section
2.5 mm²
Connection type
Push-in clamp
Exchangeable control gear
No
Constant light output (CLO)
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
more specifications
