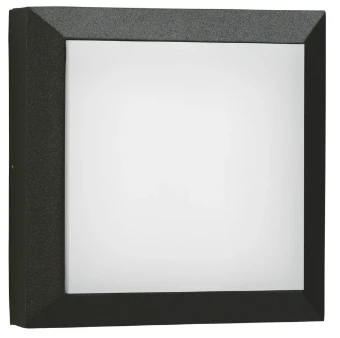

Ceiling-/wall luminaire Albert
Add to selection
General information
Ordercode YESSS
7564-8855
Product code
666560
Product group
Ceiling-/wall luminaire
Brand
Albert
Type
666560
Wand- und Deckenleuchte Typ Nr. 6560 - Farbe: schwarz, mit
Wand- und Deckenleuchte Typ Nr. 6560 - Farbe: schwarz, mit 1 x LED 8 W, 880 lm
Product description
Wand- und Deckenleuchte Typ Nr. 6560 Farbe: schwarz, mit 1 x LED 8 W, 880 lm, mit integriertem Überspannungsschutz, Lichtfarbe warmweiß, 3000 K, dimmbar, Acrylglas opal, schlagfest
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Type of control gear
LED operating device voltage-controlled
With control gear
No
Nominal voltage
230 - 230 V
Colour temperature
3000 - 3000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
Black
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Plastic, opal
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
Open beam/diffuse
Dimming phase cut-off (trailing edge)
Yes
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
55 mm
Dimming programmable
No
Width
190 mm
Dimming RF
No
Height/depth
190 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
With movement sensor
No
Light distributor
None
Protection class according to IEC 61140
I
Impact strength
IK08
Energy efficiency class of the provided exchangeable built-in lamp
E
Highest energy efficiency class of the exchangeable lamp
A++
Lowest energy efficiency class of the exchangeable lamp
E
Max. system power
8 W
Voltage type
AC
Colour of light
White
Colour rendering index CRI
80-89
Degree of protection (NEMA)
Other
Rated ambient temperature according to IEC 62722-2-1
15 - 25 °C
Filament test according to IEC 60695-2-11
None
Suitable for lamp power
8 - 8 W
Power factor
0.9
Type of wiring
Suitable for loop-through wiring
Number of poles
3
Conductor cross section
2.5 mm²
Connection type
Screwed terminal
Surface protection housing
Lacquered
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Max. number of luminaires per miniature circuit breaker B16 (MCB)
20
Max. number of luminaires per miniature circuit breaker C16 (MCB)
30
Flickering value Pst LM
1
Stroboscope effect value SVM
0.4
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG1
Unified Glare Ratio (UGR)
1
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
