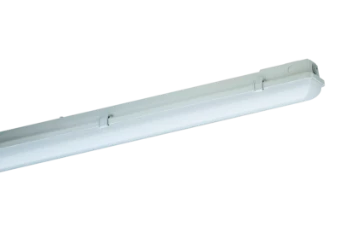

LED-Notleuchte 24W 3330lm selbst Versorgung (MA) Betriebsdauer 3h IP65 sym-breitstr

Add to selection
General information
Ordercode YESSS
7601-8937
Product code
163070055
EAN code
4041254424071
Product group
Emergency luminaire
Type
163 15L34G2/3 MA
LED-Notleuchte 24W 3330lm selbst Versorgung (MA) Betriebsdauer 3h IP65 sym-breitstr LED-Notleuchte 24W 3330lm selbst Versorgung (MA) Betriebsdauer 3h IP65 sym-breitstr 4000K Ra≥ 80 Ta 0°C/+30°C L70>100000 h (@ Ta max) L80>70000 005551
STOCK
IN STOCK
0 piece
Product description

LED-Notleuchte, 24 W, 3330 lm, selbst Versorgung (MA), Selbsttest, Betriebsdauer 3 h, SKI, IP65, symmetrisch-breitstrahlend, 4000 K, Ra≥ 80, Ta 0 °C/+30 °C, L70>100000 h (@ Ta max), L80>70000 h (@ Ta max), L90>50000 h (@ Ta 25°C), Wanne PMMA satiniert, Verschluss Kunststoff, Gehäuse glasfaserverstärktes Polyester, Farbe grau, EAN/GTIN:4041254424071.LED-Feuchtraum-Notleuchte selbstversorgt und automatischer Selbstüberwachung gemäß EN62034. Glasfaserverstärktes Polyestergehäuse, satinierte PMMA-Abschlusswanne mit Schlagzähkomponente, geschäumte Dichtung und Verschlussklammern, davon zwei Sicherheitsverschlüsse. Lackierter Aluminiumreflektor mit EVG, hocheffizienten Zhaga-konformen LED-Modulen und Abdeckung der LED-Module (Berührschutz). NiCd-Batterie mit elektronischem Ladesystem, kurzschlussfestem Akku-Anschluss, Verpolungsschutz und Tiefentladeschutz. Automatische Funktionsüberwachung mit optischer Anzeige der Prüfergebnisse.

Product specifications
Mounting method
Wall surface mounting/ceiling surface mounting
Function
Escape route lighting
Lamp type
LED exchangeable
With pictogram
No
Degree of protection (IP)
IP65
Housing material
Plastic
Material cover
Plastic matt/satinized
Housing colour
Grey
With remote switch connection
No
Battery technology
NiMH
Voltage type
AC
Nominal voltage
220 - 240 V
Protection class according to IEC 61140
I
With light source
Yes
Type of control gear
LED operating device current-controlled
Width
116 mm
Light distributor
None
Colour temperature
4000 - 4000 K
Impact strength
IK06
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1
0 - 30 °C
Max. system power
24 W
Nominal operation time
1 - 1 h
Type of wiring
Ending
Number of poles
4
Connection type
Plug-in connection
With remote control
No
Exchangeable control gear
Yes
Max. number of luminaires per miniature circuit breaker B16 (MCB)
14
Constant light output (CLO)
No
Suitable for standby switching
Yes
Suitable for continuous circuit
Yes
more specifications
^
