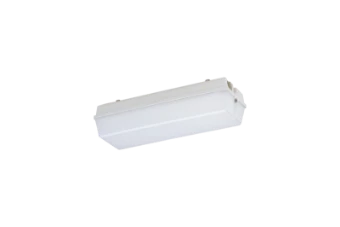

LED-Notleuchte 10W 1300lm zentrale Vers. IP65 sym-breitstr 4000K Ra≥ 80

Add to selection
General information
Ordercode YESSS
7596-0113
Product code
131120044
EAN code
4041254416854
Product group
Emergency luminaire
Type
131 L13G2 ZB
LED-Notleuchte 10W 1300lm zentrale Vers. IP65 sym-breitstr 4000K Ra≥ 80 LED-Notleuchte 10W 1300lm zentrale Vers. IP65 sym-breitstr 4000K Ra≥ 80 Ta -20°C/+30°C L70>100000 h (@ Ta max) L80>70000 h (@ Ta max) L90>50000 004498
STOCK
IN STOCK
0 piece
Product description

LED-Notleuchte, 10 W, 1300 lm, zentrale Versorgung (ZB), SKI, IP65, symmetrisch-breitstrahlend, 4000 K, Ra≥ 80, Ta -20 °C/+30 °C, L70>100000 h (@ Ta max), L80>70000 h (@ Ta max), L90>50000 h (@ Ta 25°C), Wanne PC satiniert, Verschluss Edelstahl (1.4301), Gehäuse Kunststoff (PC), Farbe weiß, für Lebensmittelbereiche (IFS), EAN/GTIN:4041254416854.Kleine schlagfeste LED-Feuchtraum-Wannenleuchte zum Anschluss an zentrale Sicherheitsstromversorgungssysteme mit Sicherung zum Abschalten im Fehlerfall. PC-Gehäuse, satinierte PC-Abschlusswanne, an einer Seite mit Mehrfachscharnier, gegenüberliegend unverlierbare Schraube, Silikondichtung. Lackierter Aluminiumreflektor mit Zhaga-konformem LED-Modul und EVG mit Überlast- und Kurzschlussschutz.

Product specifications
Mounting method
Wall surface mounting/ceiling surface mounting
Function
Escape route lighting
Lamp type
LED exchangeable
With pictogram
No
Degree of protection (IP)
IP65
Housing material
Plastic
Material cover
Plastic matt/satinized
Housing colour
White
With remote switch connection
No
Voltage type
AC/DC
Nominal voltage
220 - 240 V
Protection class according to IEC 61140
I
With light source
Yes
Type of control gear
LED operating device current-controlled
Width
120 mm
Light distributor
None
Colour temperature
4000 - 4000 K
Impact strength
IK08
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
Yes
Rated ambient temperature according to IEC 62722-2-1
-20 - 30 °C
Max. system power
13 W
Type of wiring
Ending
Number of poles
3
Connection type
Plug-in connection
With remote control
No
Exchangeable control gear
Yes
Max. number of luminaires per miniature circuit breaker B16 (MCB)
27
Constant light output (CLO)
No
Suitable for standby switching
No
Suitable for continuous circuit
No
more specifications
^
